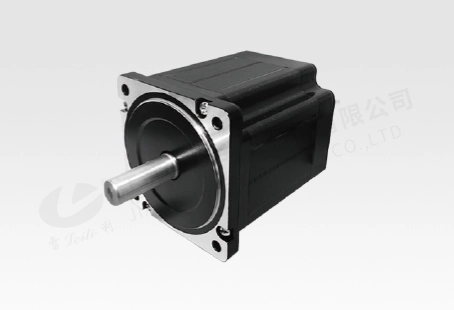

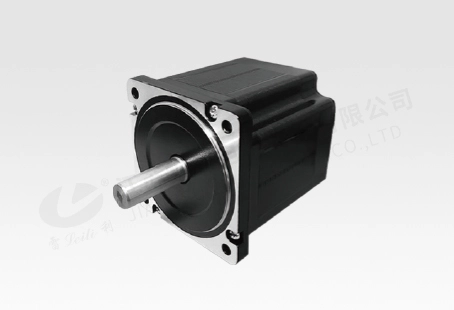

86 Series Hybrid Stepping Motors

Typical Applications:
CCTV monitor
Medical appliance
OA financial equipment
Industrial equipment

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.
Availability:
Quantity:

PDF Export

Performance Parameters


型号
Model
电流
Current
(RmsA)
电阻
Resistance
(Ω)
电感
Inductance
(mH)
保持力矩
HoldingTorque
(N·m)
转子惯量
RotorInertia
(g·cm²)
机身长度
Motorlength
(mm)
重量
MotorsWeight
(g)
34H2060 3 1 6 3 1100 60.5 1600
34H2075 4.5 0.6 4.5 4.5 1800 75 2100
34H2098 6 0.5 3.5 7 2800 96.5 2900


Mechanical Dimensions:mm


Mechanical Dimensions of 86-Series-Hybrid-Stepping-Motors supplier


Frequency-torqu characteristics


Frequency-torqu characteristics 86-Series-Hybrid-Stepping-Motors
