Home appliance
100-200, 200-300
0-40, 40-80
1
0-50
3000, 3600
Performance Parameter
| Motor type | Coil | Stator (mm) | Rated voltage (V) | Rated frequency (Hz) | Power (W) | Electric current (mA) | Starting voltage （V） | Head (M) | Flow rate （L/min） | Rotational speed (r/min) | Insulation class |
| BPX201-x | Cu | 20 | 110-120 | 60 | 40 | 0.35 | 102 | 1 | 17 | 3600 | F |
| BPX201-xL | Al | 20 | 110-120 | 60 | 40 | 0.35 | 102 | 1 | 17 | 3600 | F |
| BPX202-x | Cu | 20 | 220-240 | 50 | 40 | 0.35 | 187 | 1 | 17 | 3000 | F |
| BPX202-xL | Al | 20 | 220-240 | 50 | 40 | 0.35 | 187 | 1 | 17 | 3000 | F |
| BPX202-x | Cu | 20 | 220 | 60 | 40 | 0.35 | 187 | 1 | 17 | 3600 | F |
| BPX202-xL | Al | 20 | 220 | 60 | 40 | 0.35 | 187 | 1 | 17 | 3600 | F |

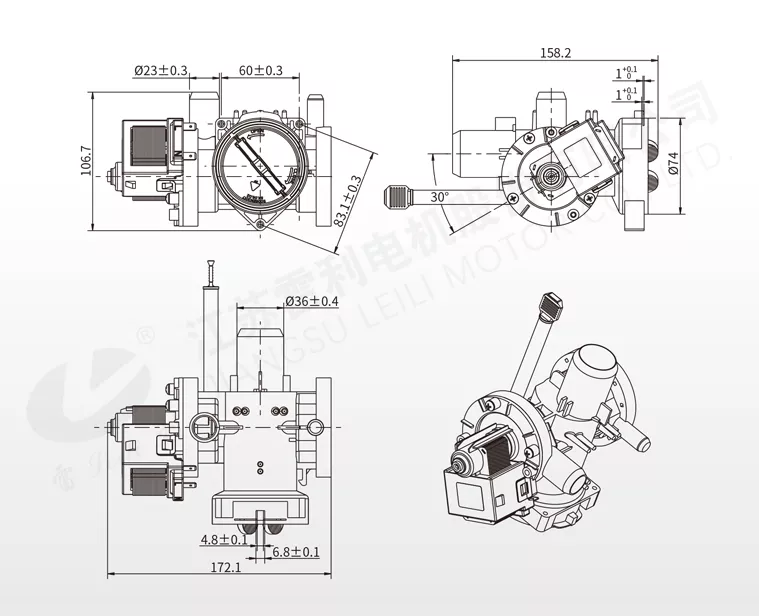

Mechanical Dimensions
Performance Parameter
| Motor type | Coil | Stator (mm) | Rated voltage (V) | Rated frequency (Hz) | Power (W) | Electric current (mA) | Starting voltage （V） | Head (M) | Flow rate （L/min） | Rotational speed (r/min) | Insulation class |
| BPX201-x | Cu | 20 | 110-120 | 60 | 40 | 0.35 | 102 | 1 | 17 | 3600 | F |
| BPX201-xL | Al | 20 | 110-120 | 60 | 40 | 0.35 | 102 | 1 | 17 | 3600 | F |
| BPX202-x | Cu | 20 | 220-240 | 50 | 40 | 0.35 | 187 | 1 | 17 | 3000 | F |
| BPX202-xL | Al | 20 | 220-240 | 50 | 40 | 0.35 | 187 | 1 | 17 | 3000 | F |
| BPX202-x | Cu | 20 | 220 | 60 | 40 | 0.35 | 187 | 1 | 17 | 3600 | F |
| BPX202-xL | Al | 20 | 220 | 60 | 40 | 0.35 | 187 | 1 | 17 | 3600 | F |
Mechanical Dimensions
