AC Synchronous Washing Pump

█ Product Introduction
Ac synchronous washing pump
█ Application
Appliance: dishwasher, washing machine, humidifier, foot bath
█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.
Availability:
Quantity:
Inquiry

PDF Export

  • Home appliance

  • 200-300

  • 40-80

  • 2.5

  • 0-50

  • 3000  3600

Performance Parameter



Series No.
Wire
Stator
Rated
Voltage
(VAC)
Rated
Frequency
(Hz)
Power
(W)
Current
(A)
Starting
Voltage
(V)
Lift
(m)
Flow
Rate
(L/min)
Rated
Speed
(RPM)
Insulation
Class
BPX11-X Cu 40mm 120 60 80 1.5 102 3.4 45 3600 F
BPX12-x Cu
220-240 50 65 0.6 187 2.5 42 3000

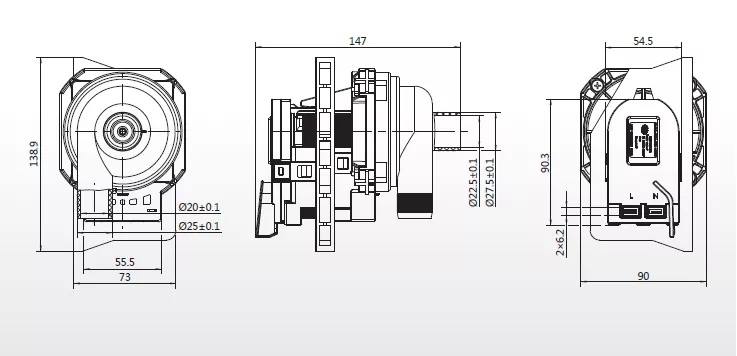

Mechanical Dimensions

Ac synchronous washing pump-1
