Auto parts
0-100
0-40, 40-80, 80+
Product Parameter
Model | Working Medium | Ambient Temperature | Medium Temperature | Rated Voltage | Weight | Lifetime | Protection Level | Protection Function |
| BLP93-3XX | Antifreeze | -40℃～ +85℃ | 40℃～ +85℃ (Limiting temperature +105℃) | DC12V；Voltage range： DC9V ～ DC16V DC24V：Voltage range： DC18V ～ DC32V | 0.9kg （Base free） | ≥ 20000h | IP68 | Over/under voltage, blocked rotation, Reverse connection, overcurrent, idling |
| Model | Rated power | Rated parameter | Inlet and outlet size | Voltage platform |
| BLP93-3XX | 100W | Q=1800L/h 时 , H=9m | Ø20mm/Ø25mm | 12V/24V |

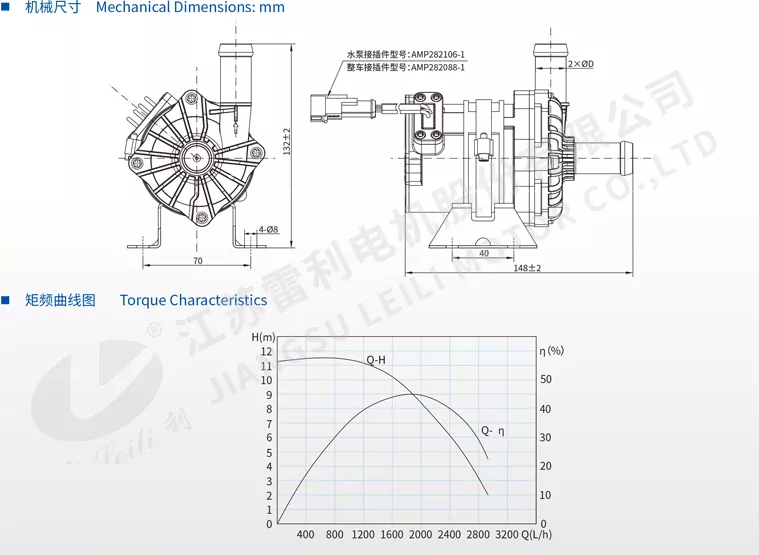

Mechanical dimension
Product Parameter
Model | Working Medium | Ambient Temperature | Medium Temperature | Rated Voltage | Weight | Lifetime | Protection Level | Protection Function |
| BLP93-3XX | Antifreeze | -40℃～ +85℃ | 40℃～ +85℃ (Limiting temperature +105℃) | DC12V；Voltage range： DC9V ～ DC16V DC24V：Voltage range： DC18V ～ DC32V | 0.9kg （Base free） | ≥ 20000h | IP68 | Over/under voltage, blocked rotation, Reverse connection, overcurrent, idling |
| Model | Rated power | Rated parameter | Inlet and outlet size | Voltage platform |
| BLP93-3XX | 100W | Q=1800L/h 时 , H=9m | Ø20mm/Ø25mm | 12V/24V |
Mechanical dimension
