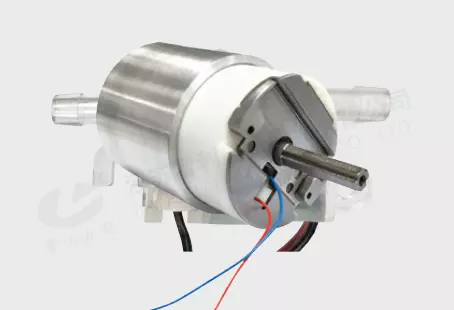

MSJ-1 Door Lock Mechanism

MSJ-1 Door Lock Mechanism

Product Introduction

  • Door lock motor MSJ-1
  • Electrical Performance: Rated 6VDC, 500±10% mA current, rated mandrel speed 10±10% RPM, no-load speed 32±10% RPM.
  • Mechanical Features: Rated output torque ≥8 kgf·cm, opening and closing time 5±0.5 seconds, mounting hole spacing 30±0.15mm.
  • Durability & Reliability: Operates at 20°C for 50,000 cycles without abnormalities, ensuring long-term performance.

Product Application

  • Electronic door lock

Product Parameters

Motor Type Rated Voltage
(VDC)
Rated Current
(mA)
Rated Mandrel Speed
(RPM)
No load Mandrel Speed
(RPM)
Rated Output Torque
(kgf·cm)
Opening and Closing Time Mounting Hole Spacing
(mm)
Service Llife
MSJ-1 6 500±10% 10±10% 32±10% ≥ 8 5±0.5S 30±0.15 At 20 ° C, there is no abnormal
operation for 50,000 consecutive cycles

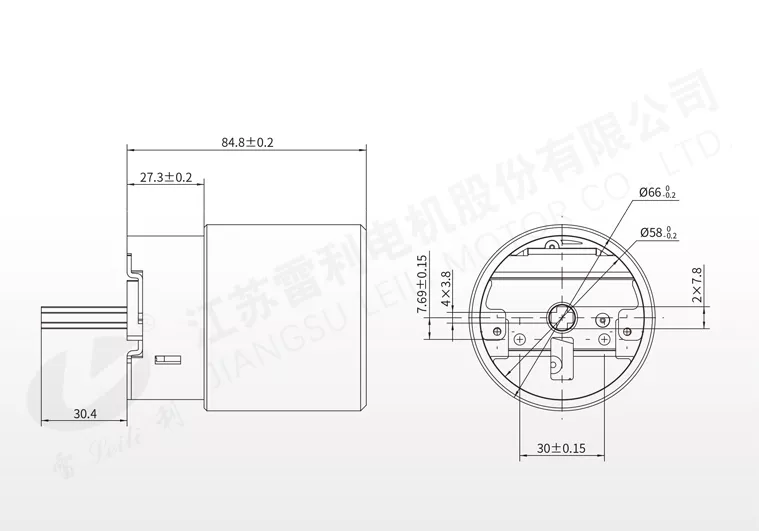

Mechanical Dimension: mm

Mechanical Dimension for MSJ-1 Door Lock Mechanism
