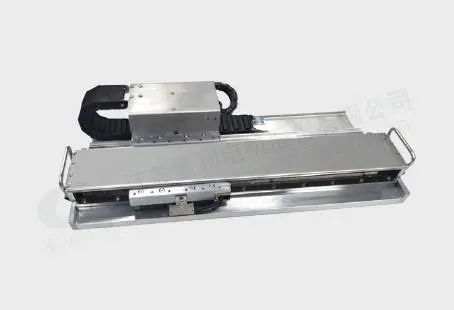

ZXYB Flat iron Linear Motor With Core
Product Introduction
- Flat iron linear motor with core ZXYB
- Model: ZXYB60-01, ZXYB60-02, ZXYB80-01, ZXYB80-02
- Polar Distance: 32 mm, optimizing the spacing between poles for efficient operation.
- Winding Temperature: 130°C, indicating high thermal tolerance for extended motor life.
Product Application
- Sports Health: Medical Devices
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | ZXYB60-01 | ZXYB60-02 | ZXYB80-01 | ZXYB80-02 |
| Peak Thrust(N) | 285 | 524 | 880 | 1250 |
| Continuous Thrust(N) | 70 | 131 | 200 | 365 |
| Motor Constant(N/ √ W) | 13.8 | 17.4 | 28.4 | 40.6 |
| Peak Current(A) | 9.5 | 9.7 | 10.1 | 6.2 |
| Continuous Current(A) | 2.7 | 2.4 | 2.2 | 1.8 |
| Thrust Constant(N/A) | 31.1 | 54.1 | 94.9 | 207.8 |
| Back Electromotive force(V/(m/s) | 18 | 31.2 | 55.1 | 120 |
| Resistance (Ω) @25° C (Ohms) | 3.4 | 5.2 | 7.5 | 17.5 |
| Inductance(mH) | 16.7 | 34.5 | 38 | 160 |
| Electrical Tme Constant(ms) | 4.9 | 4.7 | 5.1 | 9.5 |
| Winding Temperature(° C) | 130 | 130 | 130 | 130 |
| Mover Weight ( Coil ) (Kg) | 0.72 | 1.3 | 1.9 | 4.3 |
| Track Weight ( Magnetic track )(Kg/m) | 3.6 | 3.6 | 6.4 | 6.4 |
| Electromagnetic Suction(N) | 630 | 1050 | 1800 | 2600 |
| Installation Clearance (mm) | 0.85 | 0.85 | 0.9 | 0.9 |
| Polar Distance(mm) | 32 | 32 | 32 | 32 |
| Stator Standard Length (mm) | 128 | 256 | 128 | 256 |
| Stator Standard Length (mm) | 1060 | 1060 | 1280 | 1280 |
Mechanical Dimensions: mm
