Home appliance
Performance Parameter
| Model | Rated Voltage (V) | Rated Frequency (Hz) | Input Current (mA) | Input Power (W) | Operating Stroke (mm) | Starting Voltage (V) | Noise dB(A) | Installation Size (mm) | Stretch Load (N) | Insulation Class |
| TJA1-6 | 100 | 60 | ≤ 60 | 5.5 | 23±1 | 85 | ≤ 40 | 54.92 | 35.28 | A/E |
| TJA2-3 | 220-240 | 50/60 | ≤ 25 | 5 | -20°-24° | 176 | ≤ 40 | 54.92 | 32.34 | A/E |

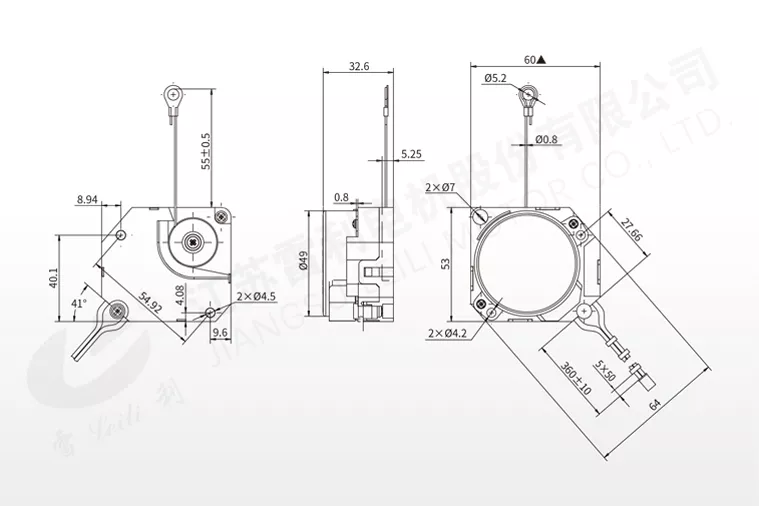

Mechanical Dimensions
Performance Parameter
| Model | Rated Voltage (V) | Rated Frequency (Hz) | Input Current (mA) | Input Power (W) | Operating Stroke (mm) | Starting Voltage (V) | Noise dB(A) | Installation Size (mm) | Stretch Load (N) | Insulation Class |
| TJA1-6 | 100 | 60 | ≤ 60 | 5.5 | 23±1 | 85 | ≤ 40 | 54.92 | 35.28 | A/E |
| TJA2-3 | 220-240 | 50/60 | ≤ 25 | 5 | -20°-24° | 176 | ≤ 40 | 54.92 | 32.34 | A/E |
Mechanical Dimensions
