Hybrid Stepper Motor 42BYGH30

█ Product Introduction

Model:42BYGH30
Hybrid stepping motor, also called HB stepping motor, combines the features of variable reluctance stepping motor and permanent magnet stepping motor. It controls the angle movement by controlling the impulse imput, so that it could realize an accurate positioning.
█ Application
Industrial: Industrial control

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Industry
Dimension Diameter（Hybrid Stepper Motor）:
42
Rated Current（A）Hybrid Stepper Motor:
0.5-1
Rated Voltage（V）Hybrid Stepper Motor:
6-10
Holding Torque（mN.m）Hybrid Stepper Motor:
300+
Motion Frequency（pps）Hybrid Stepper Motor:
0-1500 1500-3000

Product Description

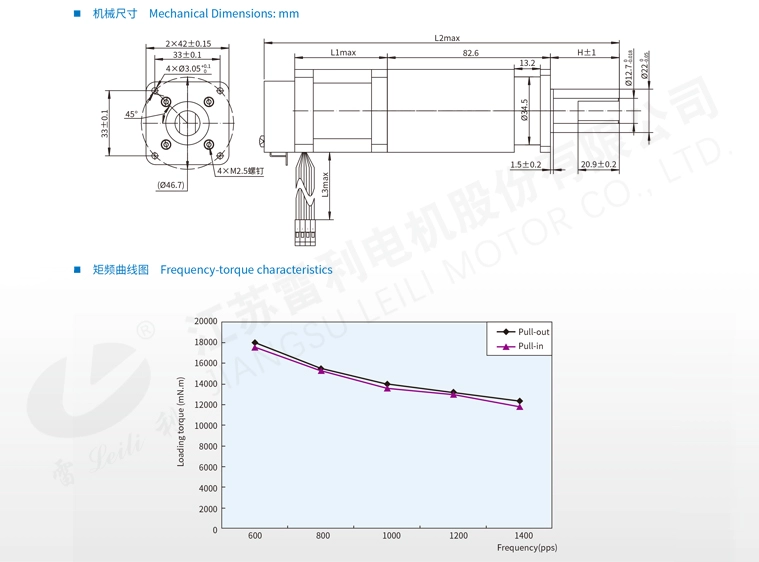

Performance

motor model	Step angle	Phase voltage	Current	Resistance	Inductance	Holding torque	Running torque	Starting frequency	Exercise frequency	Weight	Total height
motor model	(°)	(VDC)	(A)	(Ω)	(mH)	(mN.m)	(mN.m)	(PPS)	(PPS)	(Kg)	（mm）
42BYGH30-10	1.8	12	0.64	18.75	35	≥20000	≥14000	1000	1500	1.5	180
