Performance Parameter
| motor model | Body height | Phase | Step angle | Phase voltage | Phase current | Phase resistance | Phase inductance | Holding torque | InsulationResistance | InsulationPressure resistance | Temperature rise | Insulation level |
| (L) | (Whole) | (VDC) | (A) | (20℃) | (0.3V, 1kHz) | (2-phase excitation) | (DC500V) | (AC600V | (K) | |||
| (±5%) | (±5%) | (±20%) | (N·m) | (MΩ) | 1s 3(mA) | |||||||
| (°) | (Ω) | (mH) | ||||||||||
| 85BYGH33-X | 68 | 2 | 1.8 | 1.68 | 4 | 0.42 | 3 | ≥ 3.5 | > 100 | No arc breakdown | ≤ 80 | B |
| 85BYGH43-X | 78 | 2 | 1.8 | 2.7 | 6 | 0.45 | 3.5 | ≥ 4.5 | > 100 | No arc breakdown | ≤ 80 | B |
| 85BYGH62-X | 98 | 2 | 1.8 | 3 | 6 | 0.5 | 5 | ≥ 8 | > 100 | No arc breakdown | ≤ 80 | B |
| 85BYGH83-X | 118 | 2 | 1.8 | 3.3 | 6 | 0.55 | 5.5 | ≥ 8.5 | > 100 | No arc breakdown | ≤ 80 | B |
| 85BYGH91-X | 126 | 2 | 1.8 | 3.9 | 6 | 0.65 | 6.5 | ≥ 10 | > 100 | No arc breakdown | ≤ 80 | B |

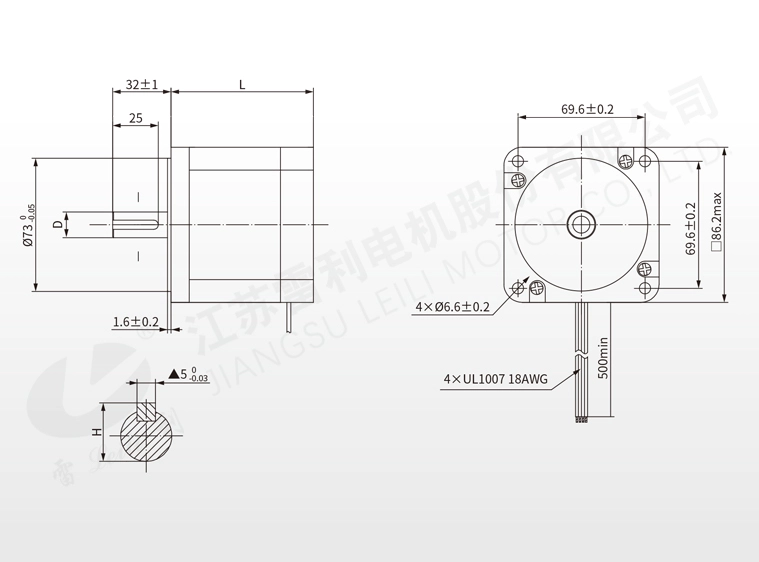

Dimension
