Hybrid Stepper Motor 86BYG

Product Introduction
Model: 86BYG
Hybrid stepping motor, also called HB stepping motor, combines the features of variable reluctance stepping motor and permanent magnet stepping motor. It controls the angle movement by controlling the impulse imput, so that it could realize an accurate positioning.
Industry: Construction machinery, industrial machinery
Optional parts
Planetary gearbox, lead screw, hollow shaft, drive
Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

PDF Export

  • Industry

  • 86

  • 0.5-1

  • 0-5

  • 300+

  • 0-1500  1500-3000

Product parameter

Bipolar drive

motor model Step angle Phase voltage Current Resistance Inductance Holding torque Output torque Positioning torque Starting frequency Exercise frequency Weight Lead Total height
(°) (VDC) (A) (Ω) (mH) (mN.m) (mN·m) (mN.m) (PPS) (PPS) (Kg) (mm)


86BYG26 1.8 2.5 0.7 3.6 38 ≥1400 300 30 800 1500 0.5 4 66

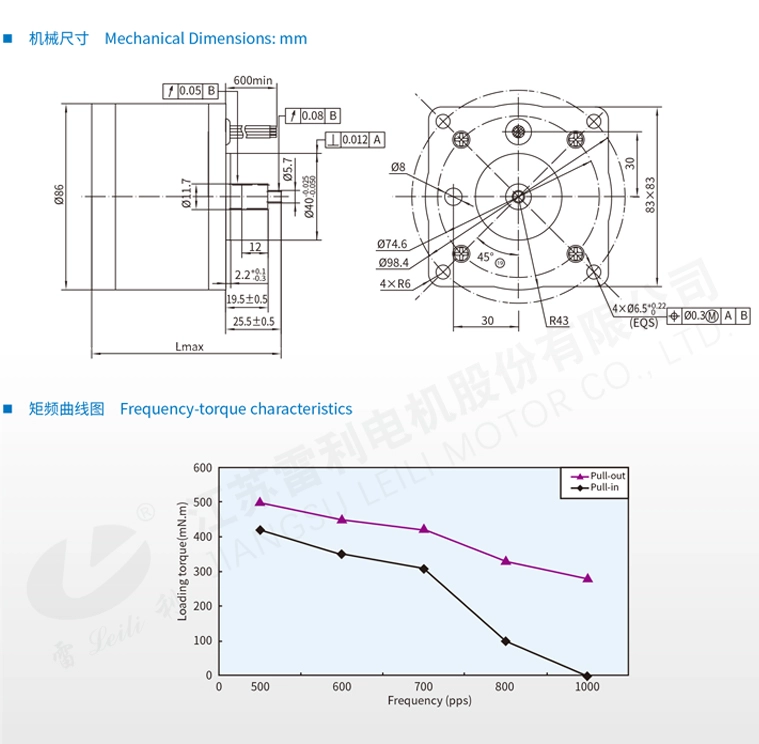

Mechanical dimension

Hybrid Stepper Motor 86BYG
