Ice Crusher CLX3/CLX6

█ Product Introduction
Suitable for refrigerator ice water system
█ Application
Household appliances: refrigerator
█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.
Availability:
Quantity:
Inquiry

PDF Export

  • Home appliance

Performance Parameter


Model Rated Voltage
(V AC)		 Insulation class No-loadSpeed
(RPM)		 No-loadPower
(W)		 Rated Speed11.4N·m RatedCurrent(mA) DC500V
(MΩ)
CLX3-1 AC (220±0.5)V
(Rectified)		 H (29±4.35)r/min CW(29±4.35)r/min CCW ≤ 20W (14.2±2.13)r/min ≤ 0.4A ★≥100MΩ
CLX6-1 DC170V(AC120V/60Hz)
(Rectified)		 180 (29±4.35)r/min CW(29±4.35)r/min CCW ≤ 20W (19.3±2.90)r/min ≤ 0.7A ★≥100MΩ

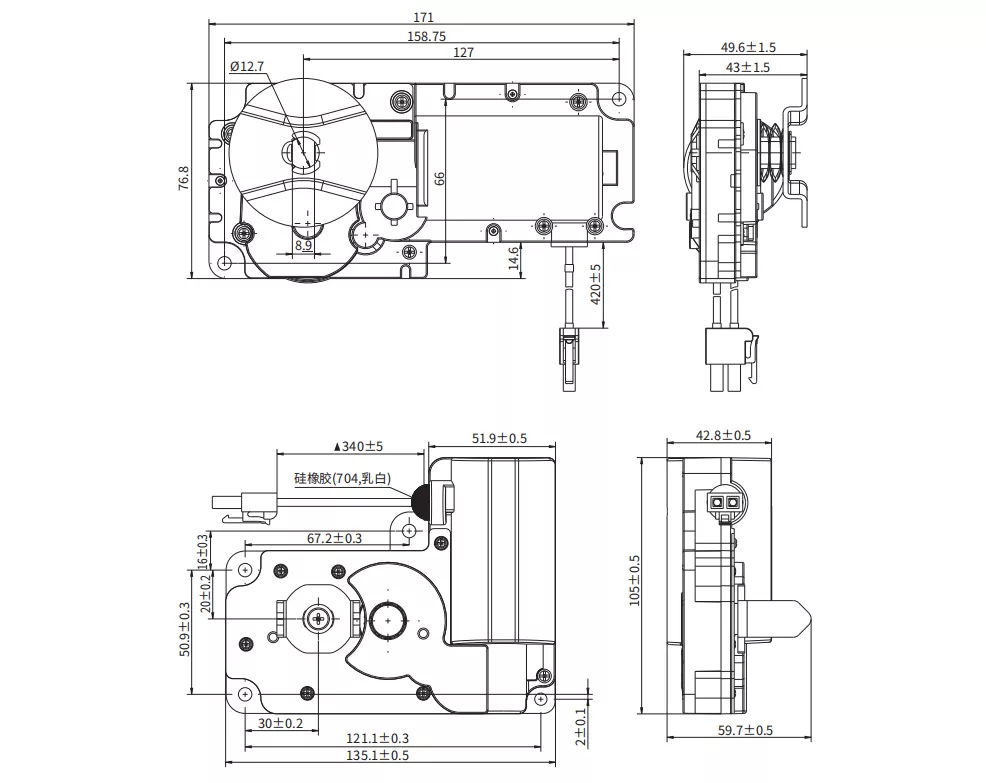

Mechanical Dimensions


Ice Crusher CLX3CLX6
