PM Stepping Motor 15BY45-XG

Model:15BY45-XG
The rotor of the Leili PM stepping motor uses permanent magnetic materials. The PM stepping motor’s continuous operation follows the principle that the same poles repel and different poles attract between the rotor and the stator. It is generally an inner rotor type motor, and the N and S poles are evenly distributed on the outer surface of the cylindrical rotor (The outer surface is toothless). PM stepping motors are usually two-phase, with small torque and volume.



Application:
Industry: Printer
Availability:
Quantity:

PDF Export

Product Description

We are committed to providing quality products to our customers and accept a minimum order of 2000 units.

For retail business please consult your local distributor.


Product Detail



Performance parameter


motor model Step angle Excitation method Drive way Voltage Current / phase Coil resistance / phase Self-positioning torque Holding torque noise Working temperature
(°) (VDC) (mA) (Ω) (mN·m) (Ω) (A) (℃)
15BY45 18/50 2-2 Bipolar 5 - 8 ≥7.1 AC 500 [V] ≤ 50 -10 ~ 50
Phase 1 [min] (No strange sound)
15BY45 18/50 2-2 Bipolar 12 - 120 ≥34.3

Phase

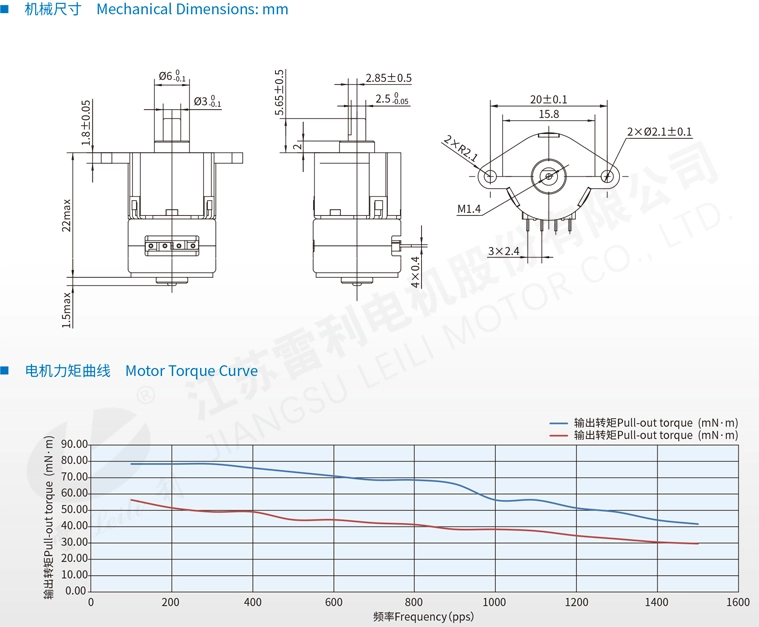

PM Stepping Motor 15BY45-XG

PM Stepping Motor 15BY45-XG2
