Home appliance
Performance Parameter
| Motor type | Rated voltage (VDC) | Rated current (mA) | Rated flow (mL/min) | Flow detection error | Thermistor | Applicable water pressure (kgf/cm²) | Applicable water temperature | Storage temperature range | Storage humidity range |
| LLQ-5 | 5 | ≤ 100 | 300 ～ 900 | ±10% | no | 2 | 5℃～ 60℃ | -20℃～ 40℃ | ＜ 95%RH |
| LLQ-6 | 5 | ≤ 100 | 300 ～ 900 | ±10% | yes | 2 | 5℃～ 60℃ | -20℃～ 40℃ | ＜ 95%RH |

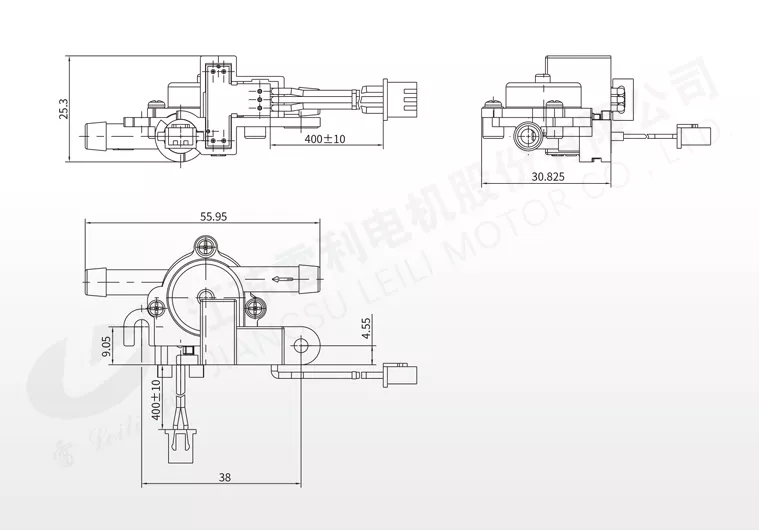

Mechanical Dimensions
Performance Parameter
| Motor type | Rated voltage (VDC) | Rated current (mA) | Rated flow (mL/min) | Flow detection error | Thermistor | Applicable water pressure (kgf/cm²) | Applicable water temperature | Storage temperature range | Storage humidity range |
| LLQ-5 | 5 | ≤ 100 | 300 ～ 900 | ±10% | no | 2 | 5℃～ 60℃ | -20℃～ 40℃ | ＜ 95%RH |
| LLQ-6 | 5 | ≤ 100 | 300 ～ 900 | ±10% | yes | 2 | 5℃～ 60℃ | -20℃～ 40℃ | ＜ 95%RH |
Mechanical Dimensions
