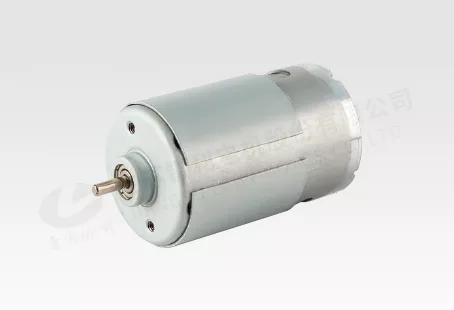

RS-550SH Micro DC Brush Motor
Product Introduction
- Efficient Operation: Runs at 7.2V with ≤2.0A input current, ensuring stable and energy-efficient performance.
- Reliable Speed: Delivers a load speed of 4550±10% RPM, maintaining smooth and consistent operation.
- Optimized Design: Supports ≤35A current with ≤6.6W input power, ideal for various micro motor applications.
Product Application
- Electric tools
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage (VAC) |
Input Current (mA) |
No-load Speed (r/min) |
Input Power (W) |
Load 171.6mN·m |
|
| RS-550SH-1 | 7.2 | ≤2.0A | 10100±10% | ≤6.6 | Current
(A) ≤35 |
Load Speed
(RPM) 4550±10% |

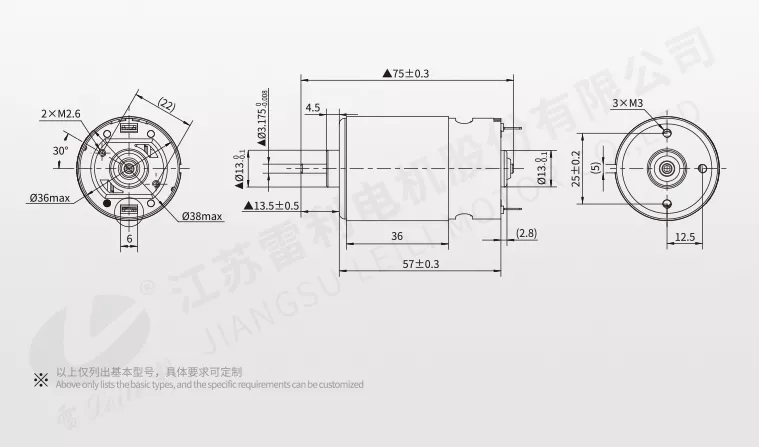

Mechanical Dimension: mm
