RS-555SH DC Brush Motor

█ Product Introduction

Model:RS-555SH
A brushed DC motor is a DC motor, assembling main magnetic pole and brush on the stator and assembling the winding coil and commutator assembled on the rotor. The electric energy from the dc power supply enters the armature winding through the brush and commutator, generating the armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate the electromagnetic torque, making the motor rotate to drive the load.
█ Application
Household appliances: water purifier
Sports Health: Game consoles
Auto parts: seat belt, electronic parking

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Auto parts
Rated Voltage（V）DC Brush Motor:
0-30
No-load Speed（r/min）DC Brush Motor:
1000-3000, 3000-10000
No-load Current（A）DC Brush Motor:
0-0.1, 0.1-0.2, 0.2-0.3
Locked-rotor Current（A）DC Brush Motor:
0-1
Output Power （W）DC Brush Motor:
0-5, 5-10

Product Description

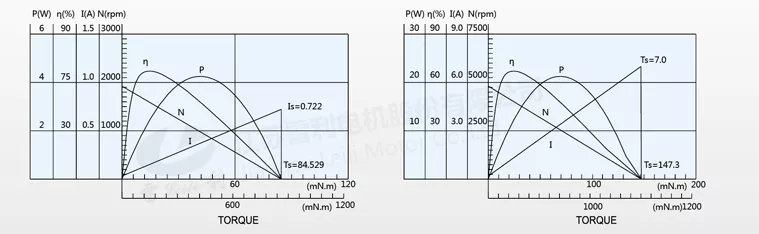

Performance parameter

Motor type		Voltage		Unloaded		At maximum efficiency					Locked-rotor
Motor type		Scope of work (V)	Rated (V)	Speed (r/min)	Electric current (A)	Speed (r/min)	Electric current (A)	Torque (mN.m)	Torque (g.cm)	Exportation (W)	Torque (mN.m)	Torque (g.cm)	Electric current (A)
RS-555SH	15260	12-28	24	1850	0.026	1560	0.15	14.7	150	2.4	84.529	862.54	0.72
RS-555SH	3256	12-28	12	5000	0.26	4309	0.15	1.12	207.7143	9.185	147.3	1503.061	7.00
