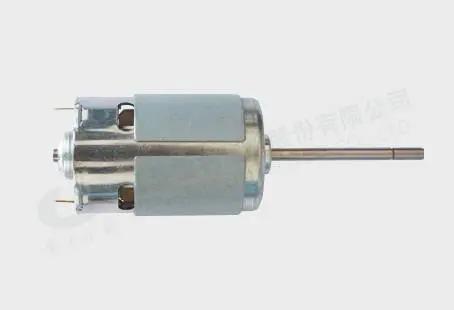

RS-7712SH DC Brush Motor

█ Product Introduction
Model:RS-7712SH
A brushed DC motor is a DC motor, assembling main magnetic pole and brush on the stator and assembling the winding coil and commutator assembled on the rotor. The electric energy from the dc power supply enters the armature winding through the brush and commutator, generating the armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate the electromagnetic torque, making the motor rotate to drive the load.
█ Application
Home appliances
█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.
Availability:
Quantity:
Inquiry

PDF Export

  • Home appliance

  • 90-120

  • More Than 10000

  • 0.1-0.2

  • 1-5

  • 10+

Performance parameter



Model Voltage No Load At Maximum Efficiency Stall
Operating
Range		 Nominal Speed Current Speed Current Torque Output Torque Current
V V r/min A r/min A mN·m g·cm W mN·m g·cm A
RS-7712SH 1329 90~160 110 11500 0.18 9600 0.85 62.6 638.78 63 367.58 3750.8 4.15

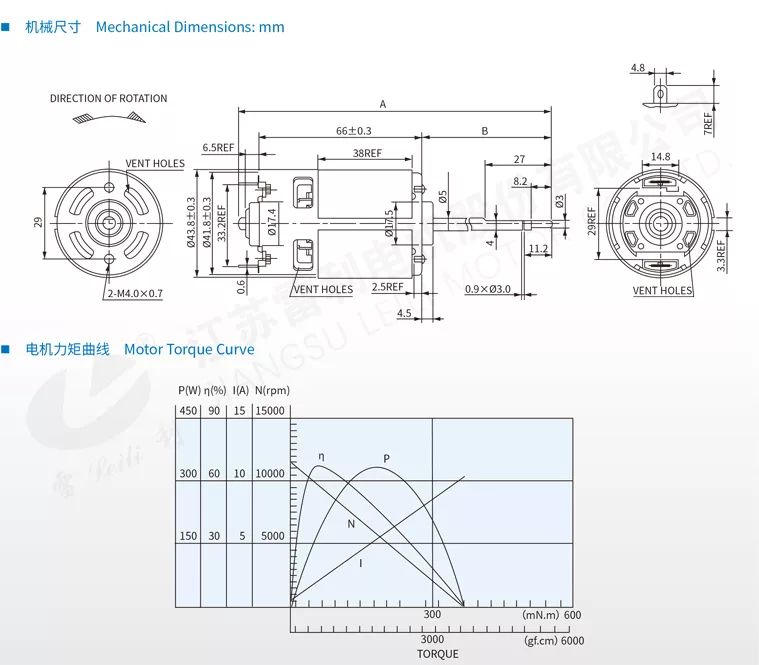

Mechanical dimension

RS-7712SH DC Brush Motor
