RS-9812SH DC Brush Motor

Product Introduction
Model:RS-9812
A brushed DC motor is a DC motor, assembling main magnetic pole and brush on the stator and assembling the winding coil and commutator assembled on the rotor. The electric energy from the dc power supply enters the armature winding through the brush and commutator, generating the armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate the electromagnetic torque, making the motor rotate to drive the load.
Application
Appliance: Food mixer
Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.
Availability:
Quantity:

PDF Export

  • Home appliance

  • 120+

  • More Than 10000

  • 0.1-0.2  More Than 0.3

  • 1-5  5-10

  • 10+

Performance parameter



Motor type
Voltage
  Unloaded
           At maximum efficiency
       Locked-rotor

Scope of work

        (V)

Rated

 (V)

Speed

(r/min)

Electric current

       (A)

Speed
(r/min)

Electric current

         (A)

Torque

(mN.m)

Torque

(g.cm)

Exportation

     (W)

Torque

(mN.m)

Torque

(g.cm)

Electric current

        (A)

RS-9812SH-1 50-160 120 12500 0.315 10050 1.29 80.0 816.3 84.16 408 4163.2 5.30
RS-9812SH-2 50-250 100 12500 0.350 10068 1.45 80.0 816.3 84.4 411.5 4199 6.0
RS-9812SH-3 50-250 240 13200 0.170 10800 0.77 95.0 969.4 107.46 522.5 5331.6 3.44

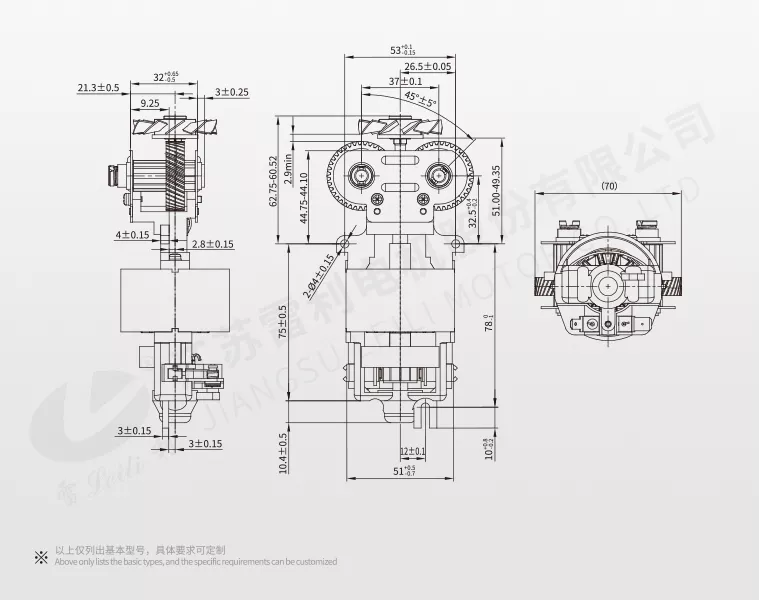

Mechanical dimension


RS-9812 DC Brush Motor
