Washing agent dispensing device Dishwashing block and rinse agent dispenser

█ Product Introduction

Dish washing blocks and detergent can be added at the same time

█ Application

Household appliances: dishwasher

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:


Inquiry PDF Export

Application:
Home appliance
Dimension Diameter（Geared Stepper Motor）:
20
Step Angle(°) Geared Stepper Motor:
3.75
Rated Voltage（DCV）Geared Stepper Motor:
5
Resistance(Ω) Geared Stepper Motor:
0-100
Operating Frequency (Geared Stepper Motor):
100
Pull in Torque(mN.m) Geared Stepper Motor:
1-100

Product Description

Performance Parameter

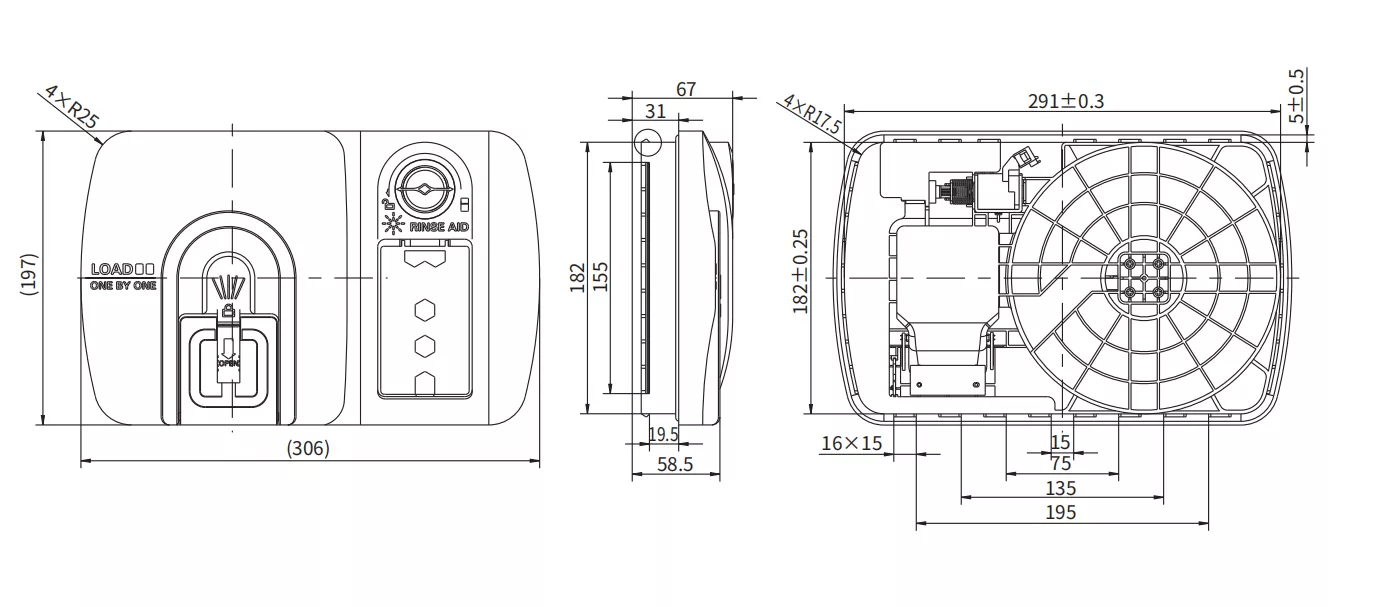

Rated Capacity (pcs)	RatedVoltage （V DC)	Current (A)	StallCurrent (A)	Noise dB(A)	Allowancereminder (ml)	Sealinggrade	Life-Cycle	Weight(g)	MechanicalDimensions(mm)
15pcs/150ml	12/220	≤0.35/≤1.1	≤1.0	≤ 50	Customization	IP68	Motor ≥ 500h Solenoid valve≥40000 times	≈ 960	296×197×67
