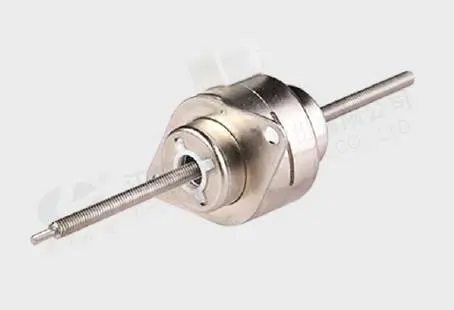

20 series PM permanent magnet screw stepper motor

Product Introduction
The rotor of the Leili PM stepping motor uses permanent magnetic materials. The PM stepping motor’s continuous operation follows the principle that the same poles repel and different poles attract between the rotor and the stator. It is generally an inner rotor type motor, and the N and S poles are evenly distributed on the outer surface of the cylindrical rotor (The outer surface is toothless). PM stepping motors are usually two-phase, with small torque and volume.
Application
Industrial control: Industrial equipment
Sports Health: Medical devices
Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:
Quantity:

PDF Export

  • Industry  Sports health

  • 20

  • 7.5  15

  • 12

  • 0-30  61-90

Performance parameter


Φ20mm Motor
Winding type Bipolar
Motorthe way Fixed shaft、Through shaft、Externally driven
Step angle(°) 7.5 15
jobs   Voltage(V) 5 12 5 12
Current per phase(mA) 370 160 370 160
Resistance per phase(Ω) 13.5 74.5 13.5 76
Inductance per phase(mH) 6.5 38.5 4 25
power(W) 3.4
Rotor inertia(gcm²) 1.05
Insulation class B
Insulation resistance(MΩ) 100
weight(g) 35

Step type


Step angle Lead Stride Leader code
mm inch mm inch
7.5° 0.6096 0.024 0.0127 0.0005 AA
1.2192 0.048 0.0254 0.001 B
2.4384 0.096 0.0508 0.002 J
15° 0.6096 0.024 0.0254 0.001 AA
1.2192 0.048 0.0508 0.002 B
2.4384 0.096 0.1016 0.004 J

Mechanical dimension


20 series PM permanent magnet screw stepper motor
