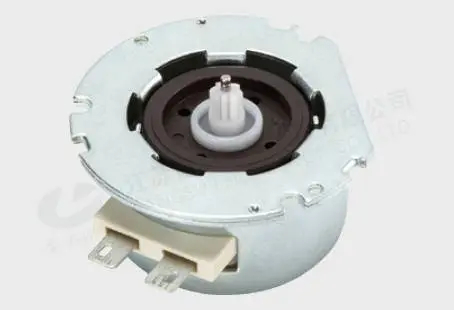

37SM22 Synchronous Motor

█ Product Introduction

Model:37SM22
Permanent magnet synchronous motor (PMSM) is a synchronous motor excited by a permanent magnet to generate a synchronous rotating magnetic field. The permanent magnet, as a rotor, generates a rotating magnetic field. The three-phase stator windings, under the action of the rotating magnetic field, react through the armature to induce a three-phase symmetrical current.
█ Application
Industry: valve control, timer

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Industry
Starting Voltage (V) Synchronous Motor:
≤20-90 ≤150-180
No-load Current（A）Synchronous Motor:
≤10-30

Product Description

Performance parameter

model	rated vol V	rated freq (Hz)	RPM (RPM)	current （mA)	power (W)	torque (mN.m)	starting vol （V）	temp (K)	noise (A)	insulation level
37SM22	220	50/60	500/600	≤20	≤3	≥2	≤160	≤65	≤60	A
37SM22	100-120	60	600	≤30	≤3	≥2	≤70	≤65	≤60	A
