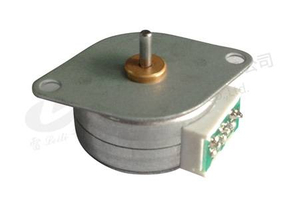

50SM25-2 Synchronous Motor

█ Product Introduction

Model:50SM25-2
Permanent magnet synchronous motor (PMSM) is a synchronous motor excited by a permanent magnet to generate a synchronous rotating magnetic field. The permanent magnet, as a rotor, generates a rotating magnetic field. The three-phase stator windings, under the action of the rotating magnetic field, react through the armature to induce a three-phase symmetrical current.
█ Application
Appliances: Air conditioning
Industry: Valve control, timer

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Home appliance, Industry
Dimension Diameter (Synchronous Motor):
50
Output Torque (kgf,cm) Synchronous Motor:
≥0-2, ≥2-4, ≥4-6, ≥6
Rated Voltage（V）Synchronous Motor:
0-100, 101-200, 201+
Starting Voltage (V) Synchronous Motor:
≤9-20, ≤20-90, ≤90-150, ≤150-180
No-load Current（A）Synchronous Motor:
≤10-30, ≤30-50, ≤50-80, ≤80-100, ≤More than 100

Product Description

Performance parameter

model	rated voltage	freq	RPM	current	power	output torque	starting voltage	temp	noise	insulation level
model	（V）	(Hz)	(RPM)	（mA)	(W)	(kgf,cm)	（V）	(K)	(A)	insulation level
50SM25-2	115	60	2.656	≤60	≤3	≥0.30	≤90	≤60	≤40	A
	115	60	3	≤60	≤3	≥0.30	≤90	≤60	≤40
	115	60	4.5	≤60	≤3	≥0.30	≤90	≤60	≤40
	115	60	9	≤60	≤3	≥0.30	≤90	≤60	≤4
