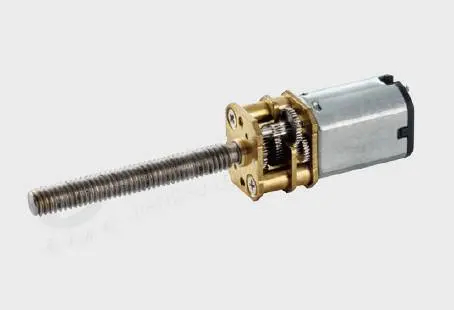

DC Brush Motor N20

█ Product Introduction

Model:N20
A brushed DC motor is a DC motor, assembling main magnetic pole and brush on the stator and assembling the winding coil and commutator assembled on the rotor. The electric energy from the dc power supply enters the armature winding through the brush and commutator, generating the armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate the electromagnetic torque, making the motor rotate to drive the load.
█ Application
Automobile: Vehicle fragrance system

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Auto parts
Rated Voltage（V）DC Brush Motor:
0-30
No-load Speed（r/min）DC Brush Motor:
0-1000
No-load Current（A）DC Brush Motor:
0-0.1
Locked-rotor Current（A）DC Brush Motor:
1-5
Output Power （W）DC Brush Motor:
0-5 5-10 10+

Product Description

Performance parameter

Rated voltage	No-load speed	No-load current	Stall current	Stalling torque	Withstand voltage	Insulation resistance	Movement amount	Reduction ratio
（V）	(RPM)	(mA)	(mA)	(N·m)	Leakage current is less than 2mA	Insulation resistance	(mm)	Reduction ratio
12	230	≤ 0.07	≤ 1.2	≥ 78	★No breakdown or flashover	≥ 10	0.00~0.3	0.111111111
