Home appliance
0-100
0-40 40-80 80+
1 2 2.5
0-50 50-100 100+
3000 3600

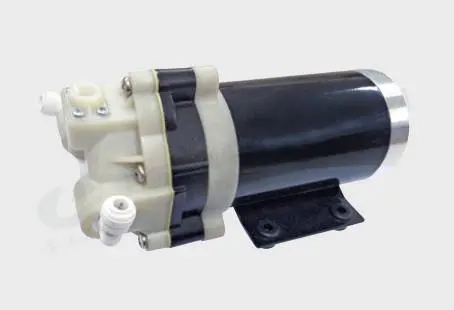

Performance Parameter
| Model | L(mm) | Voltage (VDC) | PSI | PSI (Max) | Current (A) | (LPH) | (Max)(℃ ) | PSI | Stall Current |
| DP400W-x | 215 | 24 | 30 | 70 | ≤ 2.5 | ≥ 150 | 55 | 140±10 | ≤ 3.5A |
| DP400W-y | 215 | 36 | 30 | 70 | ≤ 1.5 | ≥ 160 | 55 | 140±10 | ≤ 2.5A |
| DP50W-x | 195 | 24 | 30 | 70 | ≤ 0.9 | ≥ 35 | 55 | 120±10 | ≤ 1.3A |
| DP50W-y | 195 | 36 | 30 | 70 | ≤ 0.6 | ≥ 37 | 55 | 120±10 | ≤ 1.0A |
Mechanical Dimensions
Performance Parameter
| Model | L(mm) | Voltage (VDC) | PSI | PSI (Max) | Current (A) | (LPH) | (Max)(℃ ) | PSI | Stall Current |
| DP400W-x | 215 | 24 | 30 | 70 | ≤ 2.5 | ≥ 150 | 55 | 140±10 | ≤ 3.5A |
| DP400W-y | 215 | 36 | 30 | 70 | ≤ 1.5 | ≥ 160 | 55 | 140±10 | ≤ 2.5A |
| DP50W-x | 195 | 24 | 30 | 70 | ≤ 0.9 | ≥ 35 | 55 | 120±10 | ≤ 1.3A |
| DP50W-y | 195 | 36 | 30 | 70 | ≤ 0.6 | ≥ 37 | 55 | 120±10 | ≤ 1.0A |
Mechanical Dimensions
